Features:

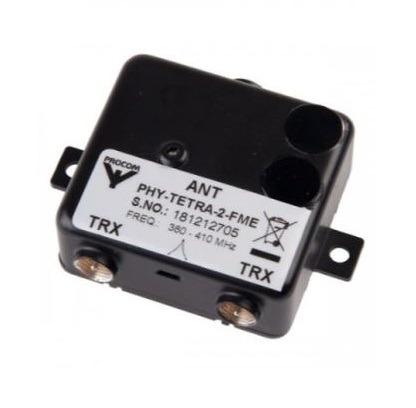

– Combiner for coupling two TETRA mobile radio devices to a common antenna.
– Factory-set to either 380 – 410 MHz or 400 – 430 MHz.
– Compact dimensions – particularly suitable for mobile applications.
– FME connections for direct connection of FME cables without additional adapters.
– For parallel operation of two two-way radios (transceivers) where the highest possible decoupling (isolation) is required.
– Integrated SWR matching network to optimize decoupling in the frequency range of 380 – 410 MHz or 400 – 430 MHz. The matching network can be used to optimize the effective SWR of the antenna and thus significantly improve the isolation between the ports of the combiner.
– High isolation achievable: Up to 60 dB (depending on the SWR of the connected antenna).
– The SWR matching network is adjusted via built-in variable capacitors.
– Max. TETRA transmission power 2 x 10 W.
– Can also be used as a DC power divider for max. 20 W.
– Very low residual ripple over the entire frequency range.
